Cutting 1/8 inch (approximately 3mm) aluminum presents a unique fabrication challenge. This thickness sits in a difficult "middle ground" for DIY enthusiasts and metalworkers. It is too thick for standard aviation snips, which will warp the metal and leave jagged, unusable edges. Yet, it is thin enough that aggressive power tools can easily overheat the material, causing it to melt and gum up the blade rather than cutting cleanly. Understanding the correct approach prevents wasted material and ruined tools.
The secret to success lies in the "Shiny Wood" mindset. Industry veterans often treat aluminum of this gauge similarly to hardwood. You can use standard woodworking tools like circular saws, routers, and jigsaws effectively. However, you must adhere to strict protocols regarding heat management, lubrication, and blade selection. Without these adjustments, the friction generated will ruin both your cut and your equipment.
This guide covers proven methods for achieving factory-quality edges on 1/8 inch aluminum. We will explore high-speed power cutting for long straight lines, precision jigsaw techniques for curves, and the silent "score and snap" method for delicate work. By prioritizing edge quality and material integrity, you can achieve professional results in a home shop environment.
Best for Straight, Long Cuts: Circular saw with a non-ferrous carbide blade (requires wax/lubricant).
Best for Curves/Shapes: Jigsaw with a coarse wood blade or bandsaw (low speed).
Best for Zero Distortion/Noise: The "Score and Snap" method using a carbide hook blade.
Avoid: Abrasive cutoff wheels (high risk of clogging/binding) and standard tin snips (will permanently deform 1/8" edges).
Critical Rule: Lubrication is mandatory for power tools to prevent aluminum friction welding to the blade teeth.
Before you engage any cutting tool, preparation is the single biggest factor in determining the quality of your finished part. Aluminum is softer than steel, making it susceptible to scratches, gouges, and vibration marks.

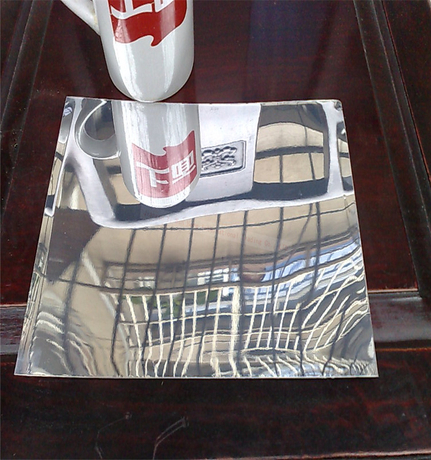

The baseplate of a saw or jigsaw can wreak havoc on your material. This is particularly critical when working with high-finish materials like Aluminum Anodized Sheet or Aluminum Mirror Sheet. Even a small piece of grit trapped under a saw shoe can etch a permanent scratch across the face of the metal as you slide the tool.
To mitigate this, use the "Tape Technique." Apply a strip of wide blue painter's tape along the intended cut line on both the top and bottom surfaces of the sheet. This serves two purposes. First, it creates a physical barrier between the tool's baseplate and the delicate aluminum surface. Second, the tape supports the metal fibers right at the cut edge, which significantly reduces chip welding and burr formation.
Vibration is the enemy of a clean aluminum cut. Unlike wood, which absorbs some vibration, thin aluminum sheets tend to resonate. This resonance causes "chatter," where the saw blade bounces microscopically against the metal. Chatter leads to rough, washboard-like edges and increases the risk of the blade catching and kicking back.
You must clamp the sheet securely. The best practice is to use a "sacrificial" backing board. Clamp your aluminum sheet directly to a piece of MDF or plywood that you do not mind cutting into. This backing board supports the metal along the entire length of the cut, dampening vibration and preventing the thin sheet from bending under the pressure of the saw.
Cutting aluminum is a visceral experience that differs significantly from cutting wood. The noise generated by a circular saw cutting through metal is a high-pitch resonance that can cause immediate hearing damage. Standard foam earplugs or high-quality earmuffs are mandatory.
Furthermore, the cutting process does not generate light dust; it generates hot, sharp metal chips. These chips fly at high velocity and retain heat for a surprisingly long time. You must wear impact-rated eye protection. Full-face shields are recommended to prevent hot chips from striking your face or neck. Long sleeves are also advisable to protect your arms from receiving minor burns from the ejecting debris.
For long, straight cuts, the handheld circular saw is the undisputed workhorse. When set up correctly, it produces an edge quality that rivals industrial shearing, often requiring little to no post-cut cleanup. The high torque and blade speed allow the tool to slice through the material before heat has a chance to migrate into the surrounding sheet.
The circular saw works because it maintains a high rim speed. This speed clears chips rapidly. However, success depends entirely on using the correct blade and technique. If you attempt this with a dull blade or the wrong tooth geometry, the aluminum will heat up, expand, and bind the blade, potentially causing dangerous kickback.
You cannot use a standard steel framing blade. The soft steel teeth will dull almost instantly against aluminum oxides. Carbide is king for this application. You need a carbide-tipped blade specifically designed for non-ferrous metals.
Look for a tooth count (TPI) between 40 and 60 for a standard 7-1/4 inch saw. These blades usually have a specific grind—often a Triple Chip Grind (TCG)—that withstands the shock of cutting metal. A high tooth count ensures a smooth finish, but go too high (like 80+ teeth on thick stock) and the small gullets may clog. A 40-60 tooth blade strikes the perfect balance for cutting a standard Aluminum sheet cleanly.
Friction generates heat, and aluminum is sticky when hot. If the metal gets too hot, it undergoes a process called "friction welding," where the aluminum melts and fuses to the carbide teeth of your blade. This ruins the blade and stops the cut.
Lubrication is the solution. Use a stick wax (often sold as band saw lubricant) and run it through the blade before you start. Alternatively, keep a can of WD-40 nearby. Spray a light mist along the cut line or directly onto the blade (while off) before cutting. The lubricant keeps the aluminum chips cool and prevents them from sticking to the carbide gullets.
Proper blade depth is a safety factor. Set the depth of your circular saw so that the lowest tooth protrudes only about 1/4 inch below the bottom of the material (and into your sacrificial board). This shallow depth ensures that the blade teeth attack the material at a shallow angle rather than a vertical chop. It reduces friction, lowers the thermal load on the blade, and significantly minimizes the risk of kickback.
When your project involves radii, circles, or complex geometries, the circular saw becomes useless. Here, the jigsaw and router take over. These tools offer maneuverability but require different tactics to manage the reciprocating nature of the cut.
Choosing a jigsaw blade for aluminum often involves a counter-intuitive choice. Many beginners reach for fine-tooth "metal" blades (24-32 TPI). While these work for very thin sheet metal, they often fail on 1/8 inch stock. The tiny teeth clog with aluminum chips almost immediately, leading to heat buildup and a stalled blade.
Often, a coarse woodworking blade (8-10 TPI) works better. The larger gullets between the teeth allow the gummy aluminum chips to eject efficiently. This clears the heat and allows the blade to keep cutting. Ensure you turn off the "orbital" action on your jigsaw. Orbital action pushes the blade forward aggressively on the upstroke, which causes violent jumping and chatter in metal. Keep the stroke vertical and linear for a smooth, controllable cut.
For duplicating parts or cutting perfect circles, a router with a carbide bit is exceptional. You can use a template bit (a bit with a bearing) to trace a pattern made of MDF. This allows for the production of identical aluminum parts.
The critical factor with routing is chip evacuation. A router buried in a slot will re-cut its own chips if they are not removed. Re-cutting chips creates immense heat and results in a ragged edge. You must use compressed air or a strong vacuum to clear the path of the bit constantly. Take shallow passes if you are not using a heavy-duty router.
Material texture influences tool choice. If you are cutting Aluminum Checker Sheet (also known as tread plate), the raised pattern creates varying thicknesses. A circular saw can snag on these thick "checkers," causing the saw to jump. A jigsaw navigates these changes in thickness much more gracefully. The reciprocating blade can handle the sudden transition from the thin base plate to the thick tread lug without the violent kickback associated with rotary blades.
For those working in apartments, late at night, or on precision electronics panels where no material loss (kerf) is desired, the "score and snap" method is ideal. This technique removes material quietly and creates no dust.
This method is best for straight cuts on smaller pieces. It is frequently used by electricians and model makers who need a distortion-free edge. Unlike shears, which curl the metal, scoring leaves the sheet perfectly flat.
Do not use a standard utility knife. A standard V-shaped knife blade works by wedging the material apart, which requires immense force and often slips. Instead, use a "hook blade" or a carbide acrylic scoring tool. These tools look like a talon. They function like a single-tooth saw, physically shaving a curl of aluminum out of the groove with every pass.
Secure a steel straight edge along your cut line. Drag the hook blade firmly along the edge. The first pass should be light to establish the track. Subsequent passes should be aggressive. You are looking to remove approximately 50% of the material thickness. For 1/8 inch aluminum, this means scoring significantly deeper than you would for plastic.
Once the score line is deep, clamp the sheet to a sturdy table with the score line aligned exactly with the table edge. Place a stiff board over the hanging waste piece and apply downward pressure. You may need to wiggle the piece up and down slightly to fatigue the remaining metal. With enough leverage, the aluminum will snap cleanly along the score line. The resulting edge is square and free of the warping associated with mechanical shearing.
There comes a point where DIY methods yield diminishing returns. If your project requires complex internal cutouts, extremely tight tolerances, or a volume exceeding 50 sheets, manual cutting becomes cost-prohibitive in terms of labor and tooling.
If you are spending more time deburring and sanding edges than assembling the final product, it is time to outsource. Additionally, if the part requires intricate internal geometry (like a logo cutout) that a jigsaw cannot easily reach, CNC methods are required.
Understanding the industrial options helps you communicate with a fabrication shop or an Aluminum sheet manufacturer.
| Method | Cost | Edge Quality | Best Application |
|---|---|---|---|
| Shearing | Low | Fair (Sharp burr) | Straight cuts, rectangles, high volume. |
| Laser Cutting | High | Good (Oxidized edge) | Complex shapes, high precision. Note: Edges need cleaning before welding. |
| Waterjet | High | Excellent (Matte finish) | Thick plate, heat-sensitive alloys. Leaves a ready-to-weld abrasive edge. |
| CNC Router | Medium | Excellent ( machined) | Large sheets, non-ferrous specifics. Good for pockets and 3D contours. |
Trade-off Note: Laser cutting uses heat, which leaves a thin oxide layer on the edge. If you plan to TIG weld the parts, this oxide layer must be ground off, or the weld will be contaminated. Waterjet cutting uses abrasive garnet and water, leaving a clean, cold-cut edge that is immediately ready for welding.
Consider the cost of tooling. A high-quality non-ferrous circular saw blade costs between $40 and $80. If you only need two cuts, this expense might equal the shop minimum charge at a local fabricator. However, for ongoing projects, owning the blade and mastering the technique offers an immense return on investment and immediate workflow flexibility.
Regardless of the cutting method, 1/8 inch aluminum will rarely come off the table ready for installation. The edges will be razor-sharp and likely have a small burr (a raised rough edge).
Leaving a raw cut edge is a safety hazard. A deburring tool with a swivel head is the industry standard for removing this edge quickly. The curved blade spins as you drag it along the edge, slicing off the burr in one smooth motion. Alternatively, a flat bastard file or a sanding block with 120-grit paper works well. Run the file at a 45-degree angle to create a small chamfer, softening the corner.
If your cut pieces are destined for welding, cleanliness is paramount. The heat from cutting accelerates oxide formation. You must clean the cut edges with acetone and scrub them with a stainless steel wire brush immediately before welding. Do not use a carbon steel brush, as it will embed iron contaminants into the aluminum, leading to rust later.
If you are using pre-finished material, remember that the cut edge is now raw aluminum. Exposed cut edges on Aluminum Anodized Sheet will be silver, interrupting the colored finish. You may need to use paint markers, touch-up pens, or design a frame that hides the raw edge to maintain the aesthetic integrity of the project.
Cutting 1/8 inch aluminum sheet effectively requires shifting your perspective. Treat the material with the respect of a hardwood, but the caution of a metal. The circular saw remains the "workhorse" for straight lines, offering speed and precision when paired with a carbide blade and wax lubrication. For delicate or noise-sensitive work, the score-and-snap method acts as the "surgeon," delivering clean edges without the chaos of power tools.
Always prioritize safety. Aluminum chips stay hot long after the noise stops, so clean your workspace immediately to prevent accidental burns or tracking debris into other areas. Before you commit to your final cut, take a moment to test your setup on a scrap corner. This simple step confirms your blade depth, lubrication, and clamp stability, ensuring your final project comes out flawless.
A: Not recommended. Standard abrasive wheels clog rapidly with soft aluminum. This clogging creates dangerous heat and can cause the disc to shatter or explode. If you must use a grinder, buy specialized cutoff wheels explicitly labeled for "Aluminum" or "Non-Ferrous" metals, which contain additives to prevent loading.
A: Yes. While you might physically force compound leverage snips through the material, the result will be poor. The metal will curl, warp, and twist severely along the cut line. This ruins the flatness of the sheet, making it unusable for precision applications.
A: Stick wax (often called Boelube) is the best option for circular saws because it adheres to the blade without making a liquid mess. For jigsaws and bandsaws, periodic sprays of WD-40 or even kerosene work well to keep the gullets clear of sticky chips.
A: Cut with the smooth side facing up if your tool allows it. Alternatively, sandwich the checker plate between a sacrificial plywood cover sheet and a backing board. This sandwich technique prevents the saw base from bouncing on the raised tread pattern, reducing vibration and chatter.
